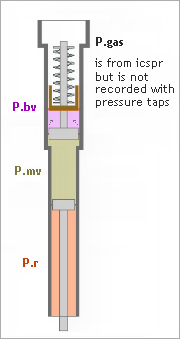

PRESSURE C     [bv force + press]     P.mv - P.bv = bv force

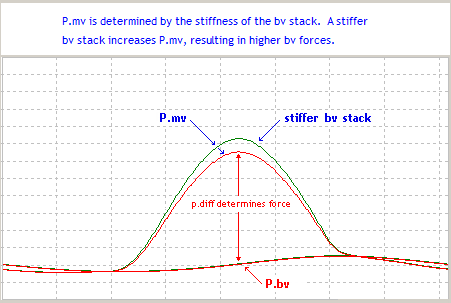

  1. P.mv is the pressure variable in the bv force.  A stiffer bv stack will create higher P.mv, resulting in higher bv forces.  [see graph below]
  2. 'bv force' comes from  P.mv - P.bv.
  3. --->  P.bv is dependant on the icspr, and does not fluctuate with valving changes, but will increase slightly on the dyno as the temperatures increase.
    • The press increases due to thermal expansion of the oil (there is no gas to expand with an icspr).
