| 2010 CRF 250 (3295) [334] |
| fk dim 10 - mv assy |
| |
click [additional info] below image |
|
mv assy
USD DFF SHOWA TC |
- mv assy includes:
- stem
- ctg rod
- 4CS cone/bullet
- DOES NOT include mv pist
|
 vlpn [bi_vlpn_fmv]  |
SF.MVAS24.250H10 |
| done |
Y |
| |
| sdpn |
na |

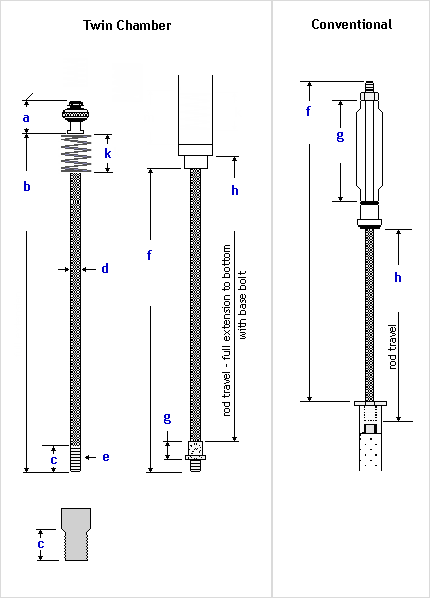

| [fmv assy dimens from] |
2010 CRF 250 |
| |
a [stand stem ht]
[fk dim 14 'a'] |
55.5 |
| b [rod to stem] |
382 |
| c [thread ht] |
19 |
| d [rod od] [rnd] |
12.5 |
| e [thread pitch] |
12 x 1.00 |
f [extended rod length]  |
319.5 |
| g [lock nut ht] |
25 |
| h [rod travel] |
307 |
| k [top out spr length] |
see fk dim 18 |
| |
|
| |
| Record count 2 for mv assy |
| List of bikes with this part from bikeinfo table. |
| id's |
bike |
