   Valving Info 107




Tapered stacks are commonly used in dirt bike suspensions.  This page will take a brief look at adjusting tapered stacks.  (more later)



Picture 2 shows a single stage tapered compression stack on a KYB 46mm shock piston.


Picture 2



Target specific damping ranges

It's been said that changing a shim located at the top of a tapered stack will target the low speed damping range to a greater degree than the high speed range, and that changing a shim located at the bottom of a tapered stack will target the high speed damping range to a greater degree than the low speed range.

Table 5 shows a comparison between two tapered shim stacks.

  • Stack v6 has the 26.20 & 24.20 shims removed.

stack v5 stack v6 11-04-05
40.20 40.20 04 RMZ 250
38.20 38.20 stk251s
36.20 36.20
34.20 34.20
32.20 32.20
28.20 28.20
26.20 0  axiom:  changing a shim located at the bottom of a tapered stack
              targets the high speed damping range
24.20 0
22.20 b 22.20 b

ips dyno forces
v5
(lbs/in)
ips dyno forces
v6
(lbs/in)
lb diff % diff
10 211 10 199 -12 94%
20 293 20 277 -16 95%
30 375 30 356 -19 95%
40 456 40 434 -22 95%
50 537 50 513 -24 96%
60 617 60 591 -26 96%
70 696 70 669 -26 96%
80 774 80 748 -26 97%
90 852 90 826 -26 97%
100 929 100 904 -25 97%
Table 5



Table 6 shows another comparison between two tapered shim stacks.

  • Stack v7 has the38.20 shim removed.
stack v5 stack v7
40.20 40.20
38.20 0  axiom:  changing a shim located at the top of a tapered stack
              targets the low speed damping range
36.20 36.20
34.20 34.20
32.20 32.20
28.20 28.20
26.20 26.20
24.20 24.20
22.20 b 22.20 b

ips dyno forces
v5
(lbs/in)
ips dyno forces
v7
(lbs/in)
lb diff % diff
10 211 10 193 -18 91%
20 293 20 270 -23 92%
30 375 30 348 -27 93%
40 456 40 427 -30 93%
50 537 50 505 -32 94%
60 617 60 583 -33 95%
70 696 70 662 -34 95%
80 774 80 740 -34 96%
90 852 90 819 -33 96%
100 929 100 898 -31 97%
Table 6

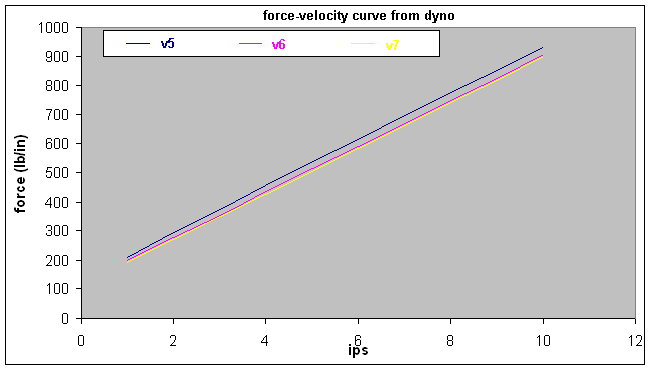

Conclusion:  chart 14 shows the damper force changes to be linear, indicating they each target the low and high speed to about the same degree.

  • This conclusion is based on changes to a single stage tapered stack.  We will run more tests on both single and two stage tapered stacks in upcoming pages.

            Chart 14




It's also been said that a tapered stack is more "progressive" than a strait stack.

Table 7 compares the tapered stack from above with a strait stack.

stack v5 stack v8
40.20 6 - 40.20
38.20 0
36.20 0
34.20 0
32.20 0
28.20 0
26.20 0
24.20 0
22.20 b 22.20 b

ips dyno forces
v5
(lbs/in)
ips dyno forces
v8
(lbs/in)
lb diff % diff
10 211 10 200 -11 95%
20 293 20 282 -11 96%
30 375 30 365 -10 97%
40 456 40 448 -8 98%
50 537 50 531 -6 99%
60 617 60 614 -2 100%
70 696 70 697 2 100%
80 774 80 781 7 101%
90 852 90 864 13 101%
100 929 100 948 19 102%
Table 7

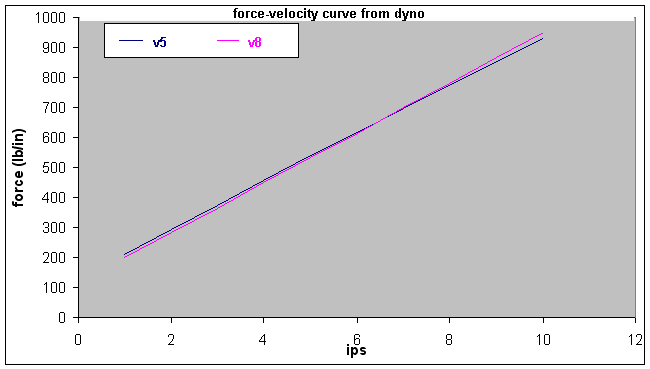

Chart 15 shows that the tapered stack is not more "progressive", but is in fact less progressive.

  • The strait stack (pink) starts slightly lower and ends higher.

          Chart 15



[top]     [next, 108]
